Fabulous FABs - sliding in and out in sync with the AppBarLayout

Juliane Lehmann / Fri, Jun 3, 2016

Edit: The code from this post became a library and got significant enhancements. It’s open source, so just look it up on github for the source code and instructions on using it as a gradle dependency.

Just want the goods without explanation? See this gist.

Picture a list view, with a Floating Action Button (FAB) sitting on it, like this:

The FAB needs to be able to move out of the way, so that all parts of all list items are actually reachable. Also, it is good form in this situation to have the app bar scroll out of the way, to maximise the viewport area dedicated to the list. There’s a well-known ready-made solution for this; it looks like this

and has two disadvantages:

Here’s how to get the FAB to move in sync with the app bar.

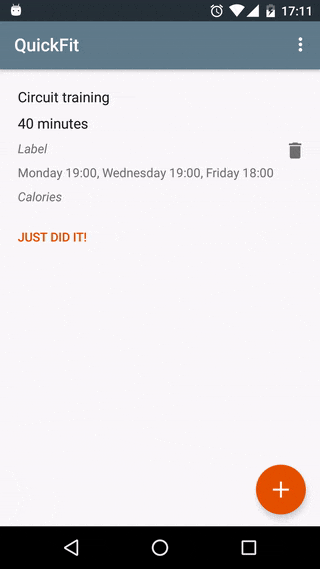

This is what we’re going to get:

As discussed above, listening for nested scroll events ourselves is not the right way; we want the FAB explicitely slaved to the app bar. Next try: extend the default FAB behavior, make it explicitely depend on any AppBarLayout, and react to onDependentViewChanged events by reading the new position of the AppBarLayout and displacing ourselves based on that. This does not work; on short flings that induce snapping, the onDependentViewChanged event does not fire for the later movement phases and the FAB gets stuck half way. Thankfully, AppBarLayout itself brings a solution: we can register an OnOffsetChangedListener on it, and this gives us the correct events, together with the vertical offset value.

The vertical offset value is offset in pixels relative to the fully expanded state, so values vary between 0 (fully expanded) and - appBarLayout.getHeight() (fully scrolled out). Hence, assuming that we’ve got the top position of the normally placed FAB stored in fabTopNormal, we can calculate the Y translation wanted for the FAB by

float displacementFraction = -verticalOffset / (float) appBarLayout.getHeight(); float fabTranslationY = (parent.getBottom() - fabTopNormal) * displacementFraction;

That’s very nice already, but not yet the full puzzle: other code may also y-translate the FAB for its own reasons. The FAB might be anchored to another view, and get translated by its parent CoordinatorLayout, or it might be a mini FAB, currently in the process of being slid out from the main FAB. So we have to track our own translation of the FAB. It would be nice to keep this code here as stateless as possible, so we don’t have to deal with saving and restoring state (edit: which is not a problem after all; there is no problem here with storing the state locally in the listener and just not saving it. So the tag usage is unnecessary.). Thanks to tags, we can just store that value with the view it belongs to. So, lets create an id resource in res/values/values.xml (or your preferred location under res/values):

and create the OnOffsetChangedListener:

Now all that’s left is to register this listener on the AppBarLayout. We can do so imperatively when creating the view, of course (edit: and this is definitely more perfomant than what follows), but for some declarative goodness, let’s create a behavior that will do it for us:

This behavior inherits from the default FAB behavior, and thus has to override onDependentViewChanged so as to suppress the superclass’ behavior (otherwise, because a dependency on the AppBarLayout is declared, we’d get the showing/hiding functionality depending on current height, meant for the situation where the FAB is anchored to the AppBarLayout). Use it in your layout like this:

and enjoy!

If you have comments, improvements or just want to tell me you liked this post, please express yourself on Google+, reddit or the gist!
